초간단 리스트뷰 (listview - 로컬 이미지, 텍스트)

프로그래밍/Android (Java)|2019. 8. 21. 08:36
반응형

* 설명부분 생략 후 코딩 부분만 스크랩

* 이미지는 4번 항목을 통해서 다운로드 할것

* 터치 이벤트를 사용하고 싶을때는 아래 url 참조 (추가된 포스팅) > 레이아웃 변경했다면 LinearLayout 깊이를 나타내는 부분 주의

http://wptrafficanalyzer.in/blog/android-itemclicklistener-for-a-listview-with-images-and-text/





4. Download and extract the zip file containing flag’s images to the directory /res/drawable-ldpi





5. Open and update the file /res/layout/main.xml with the given below code

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="fill_parent"

    android:layout_height="fill_parent"

    android:orientation="vertical" >



    <TextView

        android:id="@+id/textview"

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

    />



    <ListView

        android:id="@+id/listview"

        android:layout_width="fill_parent"

        android:layout_height="wrap_content"

    />

</LinearLayout>





6. Create a new file namely /res/layout/listview_layout.xml  and update the content with the given below code

<?xml version="1.0" encoding="utf-8"?>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"

    android:layout_width="match_parent"

    android:layout_height="match_parent"

    android:orientation="horizontal"

>

    <ImageView

        android:id="@+id/flag"

        android:layout_width="wrap_content"

        android:layout_height="wrap_content"

        android:contentDescription="@string/hello"

        android:paddingTop="10dp"

        android:paddingRight="10dp"

        android:paddingBottom="10dp"

    />



    <LinearLayout

        android:layout_width="match_parent"

        android:layout_height="match_parent"

        android:orientation="vertical"

    >

        <TextView

            android:id="@+id/txt"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:textSize="15dp"

        />



        <TextView

            android:id="@+id/cur"

            android:layout_width="wrap_content"

            android:layout_height="wrap_content"

            android:textSize="10dp"

        />

    </LinearLayout>

</LinearLayout>





7. Open and update the file /src/in/wptrafficanalyzer/listviewwithimagesandtext/MainActivity.java with the given below code

package in.wptrafficanalyzer.listviewwithimagesandtext;



import java.util.ArrayList;

import java.util.HashMap;

import java.util.List;



import android.app.Activity;

import android.os.Bundle;

import android.widget.ListView;

import android.widget.SimpleAdapter;



public class MainActivity extends Activity {



    // Array of strings storing country names

    String[] countries = new String[] {

        "India",

        "Pakistan",

        "Sri Lanka",

        "China",

        "Bangladesh",

        "Nepal",

        "Afghanistan",

        "North Korea",

        "South Korea",

        "Japan"

    };



    // Array of integers points to images stored in /res/drawable-ldpi/

    int[] flags = new int[]{

        R.drawable.india,

        R.drawable.pakistan,

        R.drawable.srilanka,

        R.drawable.china,

        R.drawable.bangladesh,

        R.drawable.nepal,

        R.drawable.afghanistan,

        R.drawable.nkorea,

        R.drawable.skorea,

        R.drawable.japan

    };



    // Array of strings to store currencies

    String[] currency = new String[]{

        "Indian Rupee",

        "Pakistani Rupee",

        "Sri Lankan Rupee",

        "Renminbi",

        "Bangladeshi Taka",

        "Nepalese Rupee",

        "Afghani",

        "North Korean Won",

        "South Korean Won",

        "Japanese Yen"

    };



    /** Called when the activity is first created. */

    @Override

    public void onCreate(Bundle savedInstanceState) {

        super.onCreate(savedInstanceState);

        setContentView(R.layout.main);



        // Each row in the list stores country name, currency and flag

        List<HashMap<String,String>> aList = new ArrayList<HashMap<String,String>>();



        for(int i=0;i<10;i++){

            HashMap<String, String> hm = new HashMap<String,String>();

            hm.put("txt", "Country : " + countries[i]);

            hm.put("cur","Currency : " + currency[i]);

            hm.put("flag", Integer.toString(flags[i]) );

            aList.add(hm);

        }



        // Keys used in Hashmap

        String[] from = { "flag","txt","cur" };



        // Ids of views in listview_layout

        int[] to = { R.id.flag,R.id.txt,R.id.cur};



        // Instantiating an adapter to store each items

        // R.layout.listview_layout defines the layout of each item

        SimpleAdapter adapter = new SimpleAdapter(getBaseContext(), aList, R.layout.listview_layout, from, to);



        // Getting a reference to listview of main.xml layout file

        ListView listView = ( ListView ) findViewById(R.id.listview);



        // Setting the adapter to the listView

        listView.setAdapter(adapter);

    }

}

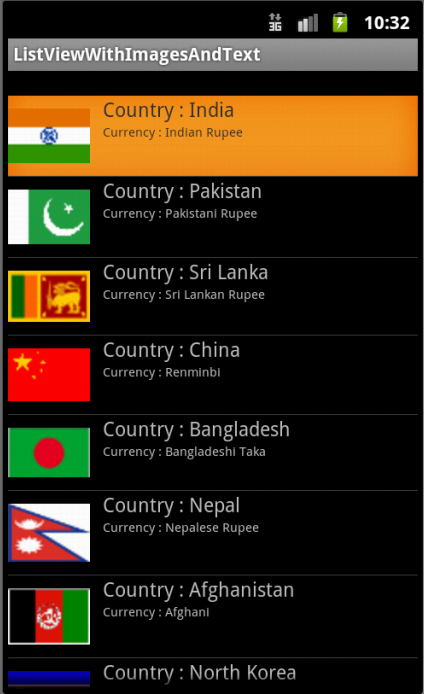

8. Run the application





9. Download the source code

ListView with Images and Text 187.83 KB

Download Source Code





[출처] http://wptrafficanalyzer.in/blog/listview-with-images-and-text-using-simple-adapter-in-android/
